Gas Chromatography Detectors: A Basic Introduction.

Gas chromatograph (GC) detectors are essential components of GC systems, responsible for monitoring and quantifying the response of compounds as they elute from the GC column after the separation process.  Each detector operates on a unique physical or chemical principle and is selected based on the required sensitivity, selectivity, compatibility with the analytes, and the intended application.

The most widely used detector is the Flame Ionisation Detector (FID).  It works by burning organic compounds in a hydrogen–air flame, producing ions measurable as an electrical current.  FIDs offer high sensitivity for hydrocarbons, a wide linear range, and excellent robustness, making them ideal for environmental analyses, petrochemical studies, and general organic quantification.  However, they cannot detect inorganic gases or fully oxidised species like CO₂ or H₂O.

Another common type is the Thermal Conductivity Detector (TCD), which measures changes in thermal conductivity of the carrier gas as analytes pass through.  Because different compounds conduct heat differently, the detector produces a measurable signal.  TCDs are universal, capable of detecting both organic and inorganic compounds, and are non-destructive.  Although less sensitive than FID, they are invaluable for permanent gas analysis.  It is non-destructive, allowing samples to be collected after detection.

The Electron Capture Detector (ECD) is highly sensitive to electronegative species, particularly halogenated compounds, nitriles, and organometallic compounds.  It works by monitoring how electronegative analytes capture electrons from a constant electron stream, reducing the current. Its extraordinary sensitivity makes it essential in pesticide residue analysis and environmental monitoring, though its selectivity limits its general use.

For element-specific detection, Mass Spectrometric Detectors (MS) play a crucial role.  MS detectors, often considered the gold standard, ionise analytes and separate the ions based on their mass-to-charge ratio.  There are many specific types of MS detectors.  GC–MS systems provide structural information, exceptional sensitivity, and powerful qualitative and quantitative capabilities across various fields, including forensic science, pharmaceuticals, and environmental science.

Other specialised detectors include the Nitrogen–Phosphorus Detector (NPD), which selectively detects nitrogen- and phosphorus-containing compounds with high sensitivity.  The NPD is a hydrogen/air flame-based detector that uses a rubidium or cesium-coated bead heated electrically.  This bead emits alkali metal ions, which interact with the flame and with analytes as they elute from the GC column.  It is selective for nitrogen and phosphorus because these elements enhance the emission of electrons/ions in the flame in a characteristic way, which produces a quantifiable response.  Routine use in environmental analysis.

Another specialised detector is the Flame Photometric Detector (FPD), which combusts column effluent in a hydrogen–air flame, producing element-specific chemiluminescence.  Optical filters isolate emission wavelengths—commonly sulfur or phosphorus—allowing for selective and sensitive detection.  It is used to quantify trace sulfur- or phosphorus-containing compounds in environmental, petrochemical, and forensic analyses.

A recent development is the Barrier Ionisation Discharge Detector (BID).  The BID detector generates a stable helium (He) plasma within a dielectric barrier discharge cell. The plasma emits high-energy photons (~17.7 eV) capable of ionising nearly all compounds except helium and neon.  As analytes elute from the GC column, they are ionised by this plasma, and the resulting ions are collected at an electrode, producing a measurable signal.  In essence, the BID operates as a universal, non-destructive detector, capable of detecting organic and inorganic compounds, permanent gases, and volatile solvents at trace levels.  The BID detector requires ultra-high purity helium to produce the plasma.

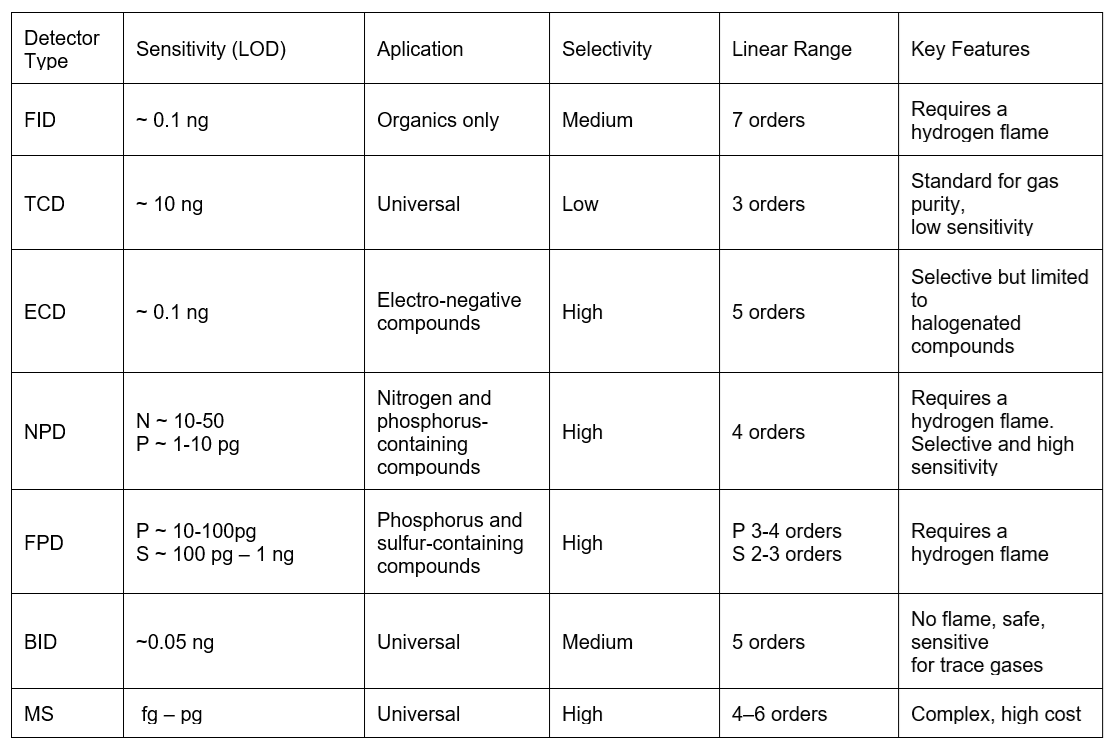

Choosing the right GC detector depends on analyte properties, desired sensitivity, selectivity, and whether structural identification is needed.  Collectively, GC detectors form a diverse toolkit enabling precise chemical analysis across scientific, industrial, and regulatory domains.
